QS18UNA

Marka : Banner

Ürün Kodu: : 73150

Range: 50-500 mm

Input: 12-30 V dc

Output: NPN

Cable: 2 m (6.5 ft) Cable

-
+

Power
DC
PFM Output
No
Sensing Beam
Ultrasonic
Jam Detection
No
Cable Length (m)
2
PC Configurable
No
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
12-30 V dc
Pin / Wire Count
4
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular w/ Threaded Mount
Device Type
Sensor
Primary Housing Material
ABS
Input/Output
Discrete
Connection
Flying Leads
Max Sensing Distance (mm)
500
Minimum Sensing Distance (mm)
50
Adjustments
Teach Button
Number of Pins
4
Discrete (Switched) Outputs
1 NPN
Max Operating Temperature (C)
60
Min Operating Temperature (C)
-20
Minimum Response Time (ms)
15
Barrel Thread
M18
Ultrasonic Frequency (kHz)
300
Laser Control
No
Feature: Remote Teach
Yes
Feature: Washdown Rated
No
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
No
Feature: Chemical Resistant
No
Feature: Pump-in/ Pump-out
No
Feature: Quick Disconnect
No
Feature: Health/Marginal Signal Output
No
Application: Ultrasonic
Yes
Common Ethernet Protocol
No
RS-232
No
Wireless
No
EPLAN Status
Published
EPLAN Original Sent Date
10/27/2022

Resim Galerisi

QS18UNA



Benzer Ürünler

T30UXDBQPMA
T30UXDBQPMA
İNCELE
S18UBAR
S18UBAR
İNCELE

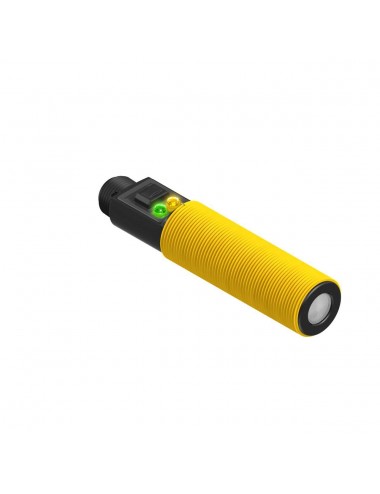

S18UBAQ
S18UBAQ
İNCELE

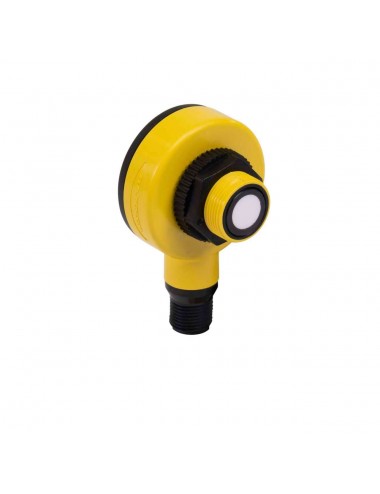

T186UEQ
