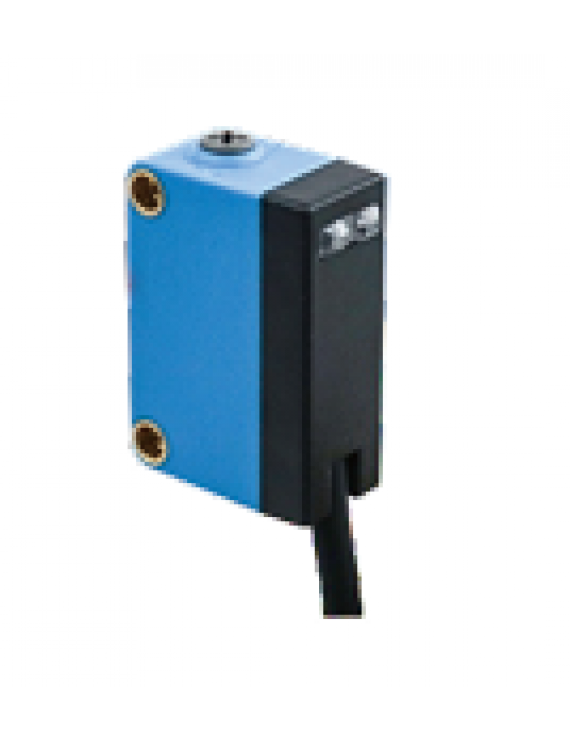

SVGB43

SVGB43

Marka : SensIVA

Ürün Kodu: : SVGB43

Range: 30-100mm (adjustable) /30-300mm (adjustable)

Input: 10-30VDC

Sensing Length: 2m cable

-

+

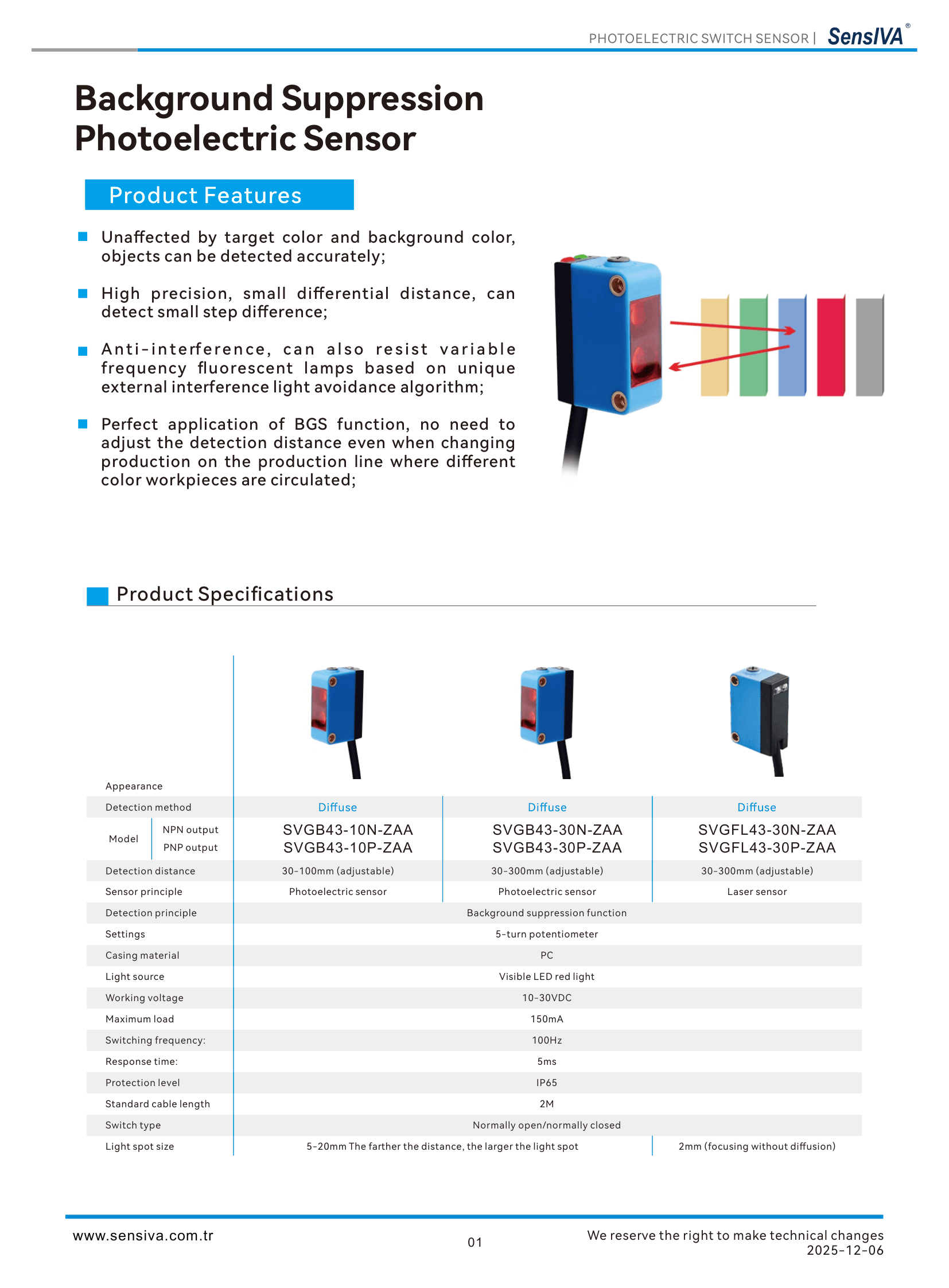

Type	Diffuse reflection	Diffuse reflection	Diffuse reflection
NPN model	SVGB43-10N-ZAA	SVGB43-30N-ZAA	SVGFL43-30N-ZAA
PNP model	SVGB43-10P-ZAA	SVGB43-30P-ZAA	SVGFL43-30P-ZAA
Detection distance	30-100mm (adjustable)	30-300mm (adjustable)	30-300mm (adjustable)
Sensor principle	Photoelectric sensor	Photoelectric sensor	Laser sensor
Detection principle	Background suppression function	Background suppression function	Background suppression function
Settings	5-turn potentiometer	5-turn potentiometer	5-turn potentiometer
Casing material	PC	PC	PC
Light source	Visible LED red light	Visible LED red light	Visible LED red light
Working voltage	10-30VDC	10-30VDC	10-30VDC
Maximum load	150mA	150mA	150mA
Switching frequency:	100Hz	100Hz	100Hz
Response time:	5ms	5ms	5ms
Protection level	IP65	IP66	IP67
Standard cable length	2M	2M	2M
Switch type	Normally open/normally closed	Normally open/normally closed	Normally open/normally closed
Light spot size	5-20mm The fa her the distance, the larger the light spot	5-20mm The fa her the distance, the larger the light spot	2mm (focusing without di usion)
