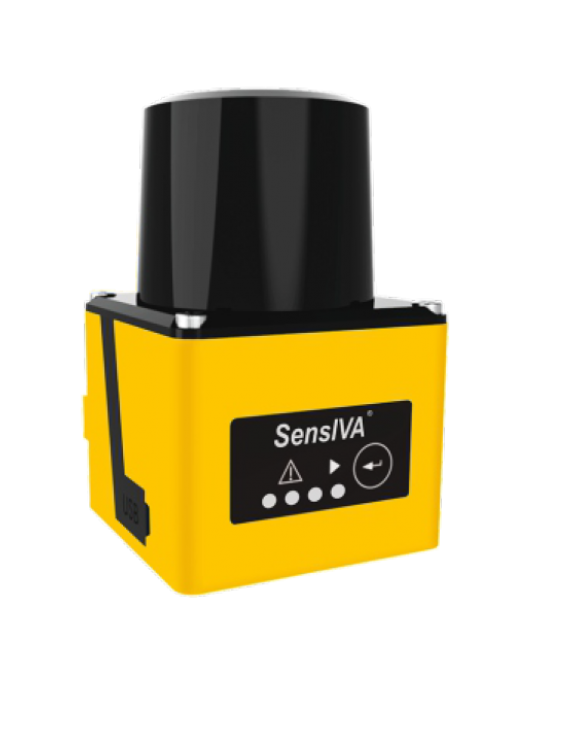

SVLD-20D

Marka : SensIVA

Ürün Kodu: : SVLD-05D/LD-20D

Range: 0.05-5m/0.05-20m

Input: DC 9 V~28 V

Output: NPN/PNP

-
+

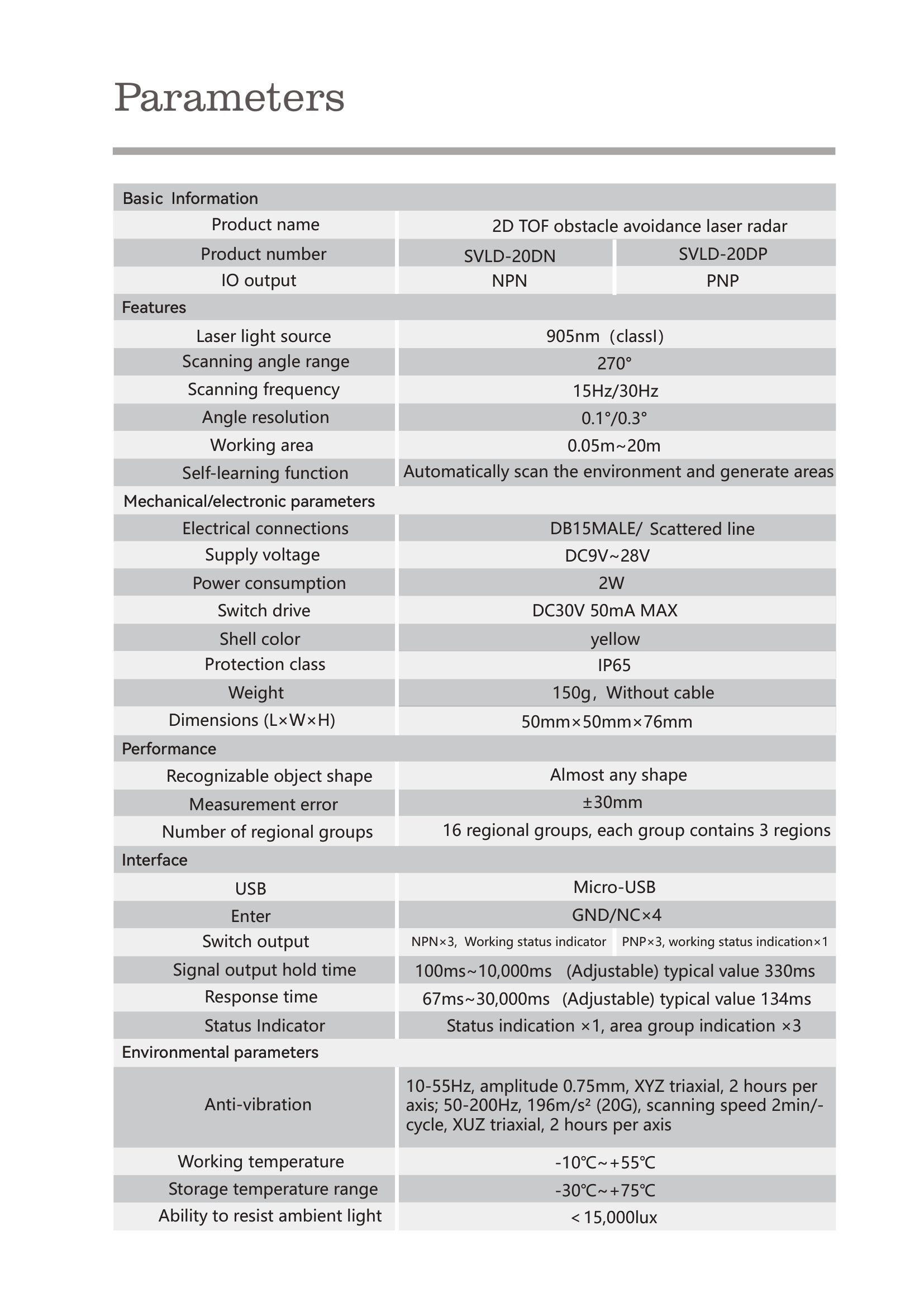

Category Parameter Value

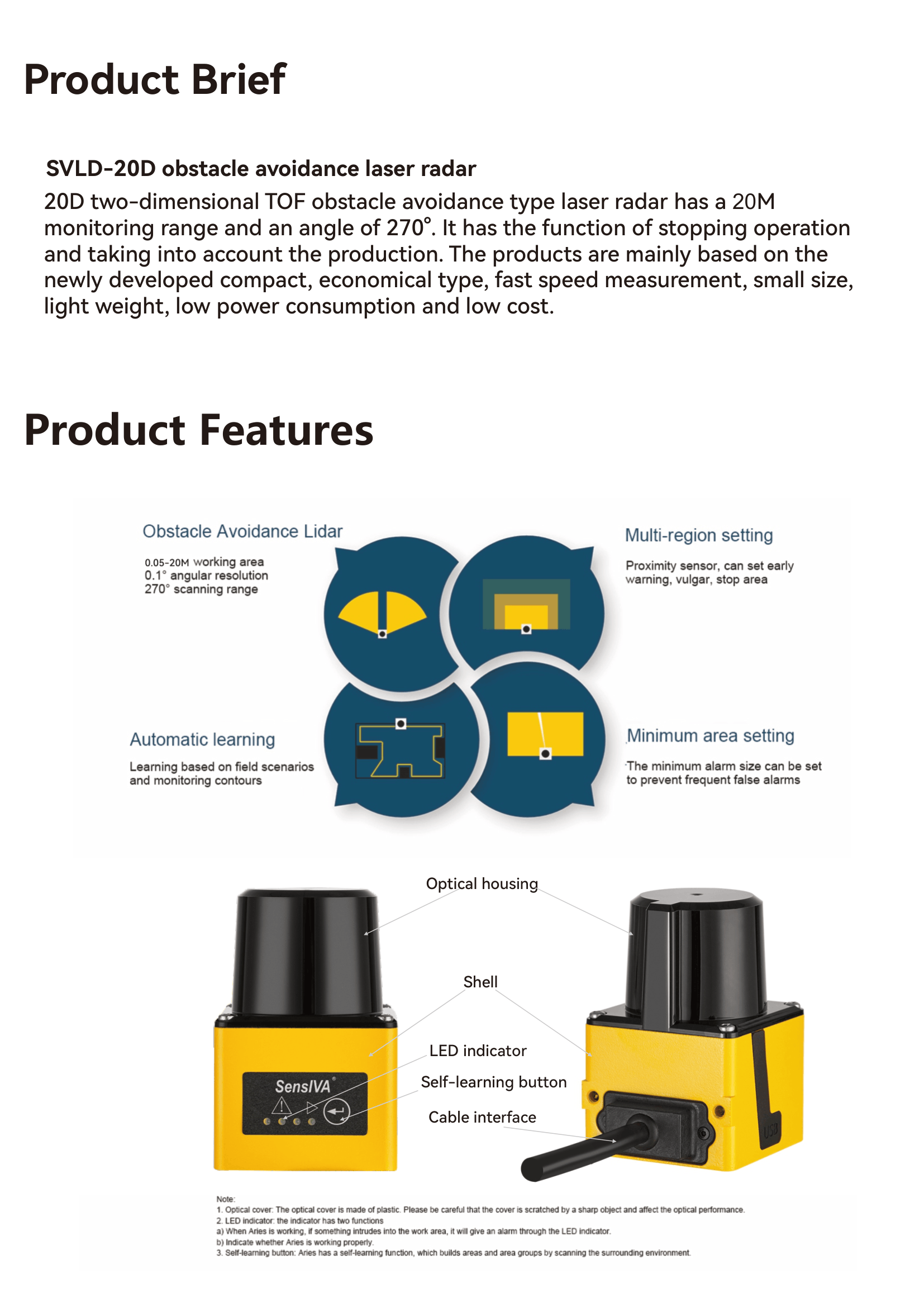

Basic Information Product name 2D TOF obstacle avoidance laser radar
  Product number SVLD-20DN / SVLD-20DP

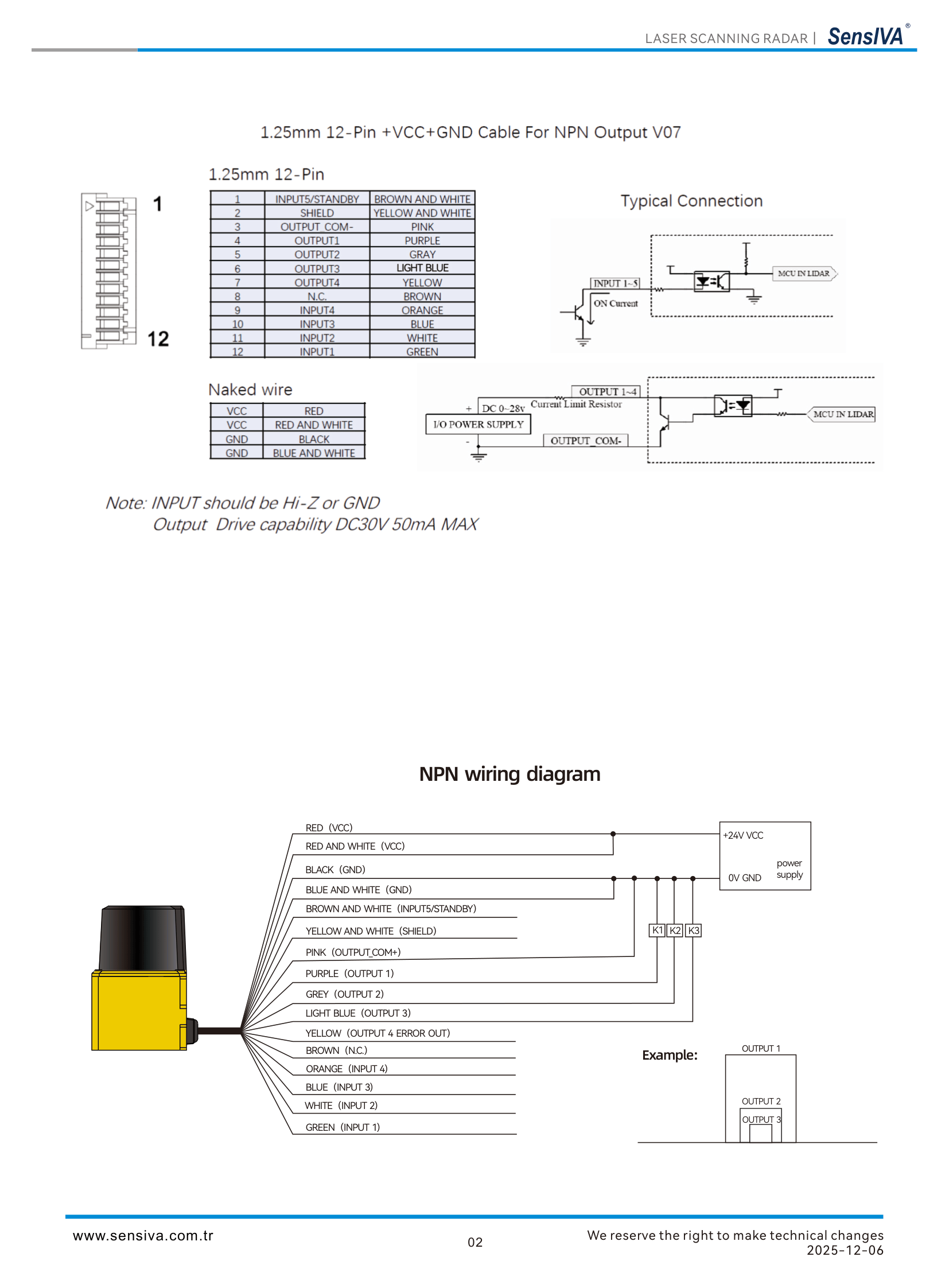

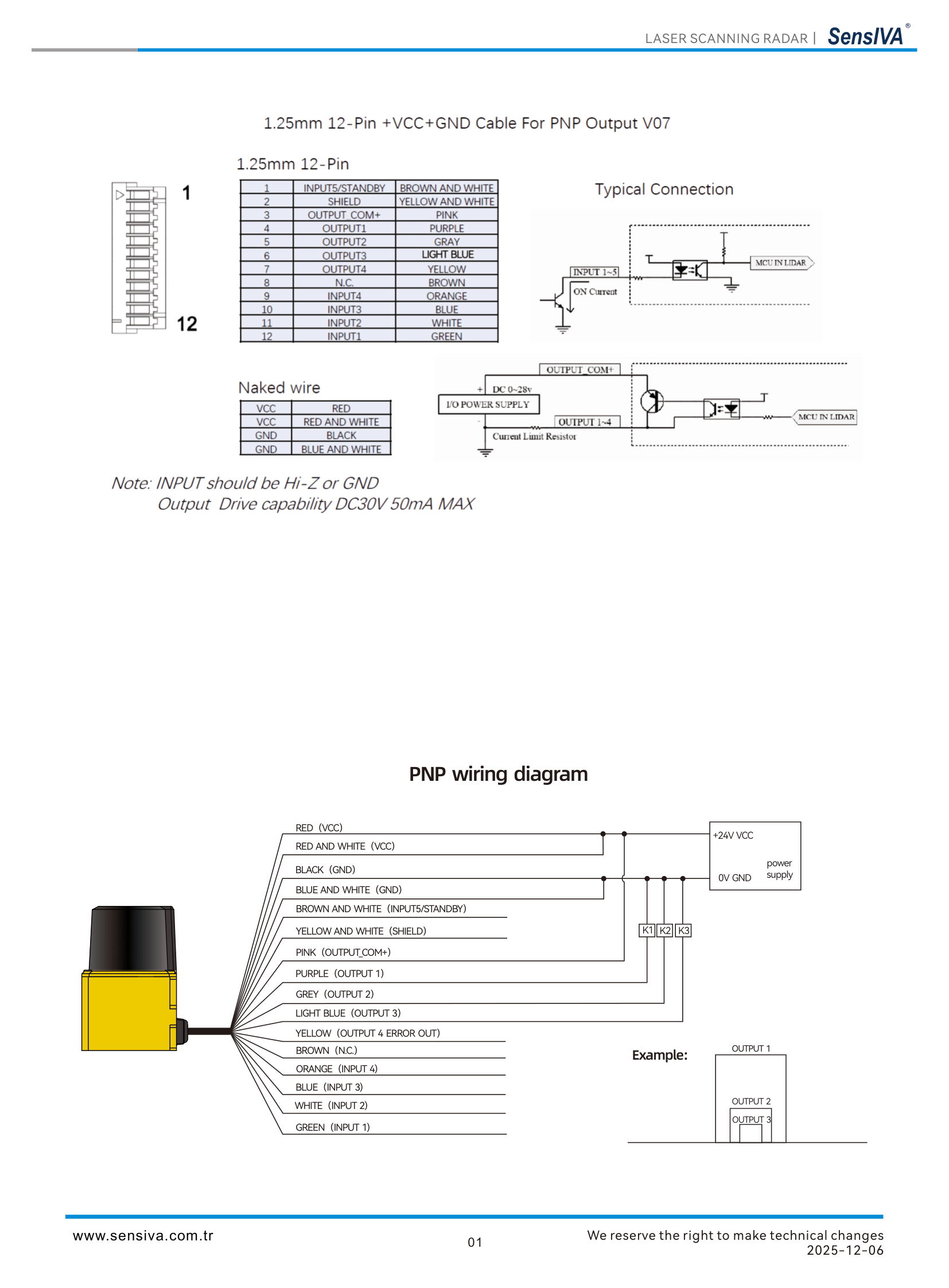

  IO output NPN / PNP
Features Laser light source 905nm (class1)
  Scanning angle range 270°
  Scanning frequency 15Hz/30Hz
  Angle resolution 0.1° / 0.3°
  Working area 0.05m~20m
Mechanical/Electronic Supply voltage DC9V~28V
  Power consumption 2W
  Protection class IP65
  Weight 150g
Performance Measurement error ±30mm
Interface USB Micro-USB
Environmental Working temperature -10°C ~ +55°C
