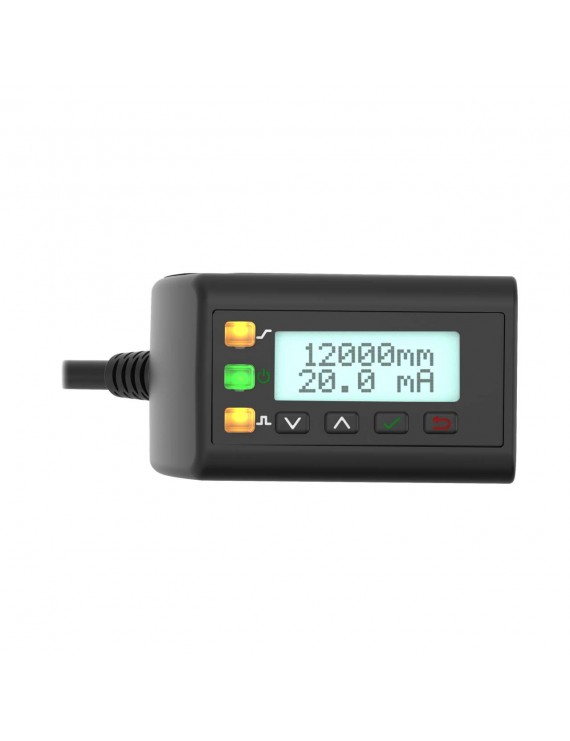

LTF12IC2LD

Marka : Banner

Ürün Kodu: : 94851

Range: 50-12000 mm

Input: 12-30 V dc

Output: Analog: 4-20 mA; Class 2 Laser Discrete: NPN/PNP

Cable: 2 m (6.5 ft) Cable

-
+

Power
DC
PFM Output
No
Sensing Beam
Visible Red Laser
Jam Detection
No
Cable Length (m)
2
PC Configurable
No
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
12-30 V dc
Pin / Wire Count
5
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Time of Flight
Housing Style
Rectangular
Device Type
Sensor
Primary Housing Material
Zinc Alloy Die-Cast
Laser Classification
Class 2
Input/Output
Analog & Discrete
Analog Output Configuration
4-20 mA
Connection
Flying Leads
Max Sensing Distance (mm)
12000
Minimum Sensing Distance (mm)
50
Adjustments
Push Button; Remote Teach
Number of Pins
5
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Operating Temperature (C)
55
Min Operating Temperature (C)
-20
Minimum Response Time (ms)
1.5
Laser Control
Yes
Max Ambient Light (Lux)
40000
Feature: Remote Teach
Yes
Feature: Washdown Rated
No
Feature: Clear Object Detection
No
Feature: Timing (Hold/Delay)
Yes
Feature: Chemical Resistant
No
Feature: Pump-in/ Pump-out
No
Feature: Quick Disconnect
No
Feature: Health/Marginal Signal Output
Yes
Application: Ultrasonic
No
Common Ethernet Protocol
No
IO Link
No
RS-232
No
Wireless
No
EPLAN Status
Published
EPLAN Original Sent Date
10/27/2022

Resim Galerisi

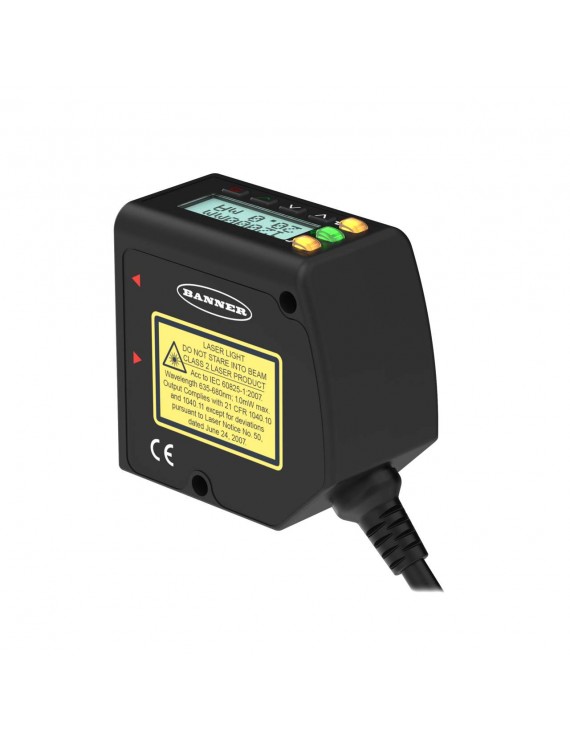

LTF12IC2LD LTF12IC2LD



Benzer Ürünler

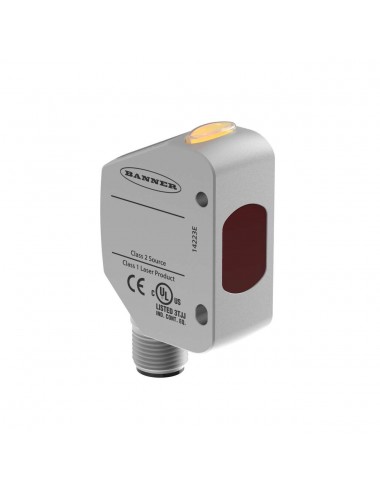

Q4XFPCOD310-Q8
Q4XFPCOD310-Q8
İNCELE

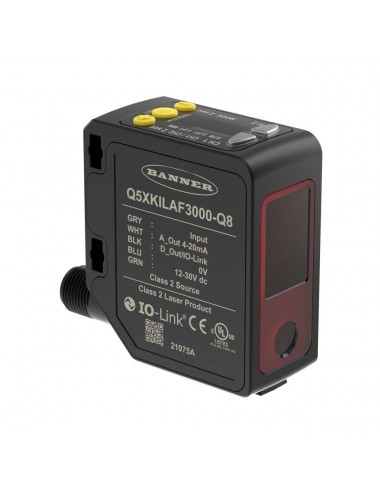

Q5XKILAF3000-Q8
