Q5XKILAF3000-Q8

Marka : Banner

Ürün Kodu: : 809366

Range: 3000mm

Input: 12-30 V dc

Output: Analog: 4-20 mA Discrete: PNP/NPN with IO-Link

Cable: 5-pin M12 Integral QD

-
+

Power
DC
PFM Output
No
Sensing Beam
Visible Red Laser
Jam Detection
No
PC Configurable
No
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
12-30 V dc
Pin / Wire Count
4
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background/Foreground Suppression
Housing Style
Rectangular
Device Type
Sensor
Primary Housing Material
ABS
Laser Classification
Class 2
Input/Output
Analog & Discrete
Analog Output Configuration
4-20 mA
Connection
Integral QD
Quick Disconnect Type
M12
Max Sensing Distance (mm)
3000
Minimum Sensing Distance (mm)
95
Adjustments
Push Button; Remote Teach
Number of Pins
4
Discrete (Switched) Outputs
1 NPN/PNP Configurable
Max Operating Temperature (C)
50
Min Operating Temperature (C)
-10
Minimum Response Time (ms)
0.5
Laser Control
Yes
Max Ambient Light (Lux)
up to 5000 lux
Feature: Remote Teach
Yes
Feature: Washdown Rated
No
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
Yes
Feature: Chemical Resistant
No
Feature: Pump-in/ Pump-out
No
Feature: Quick Disconnect
Yes
Feature: Health/Marginal Signal Output
No
Application: Ultrasonic
No
Common Ethernet Protocol
No
IO Link
Yes
RS-232
No
Wireless
No
EPLAN Status
Published
EPLAN Original Sent Date
04/21/2022

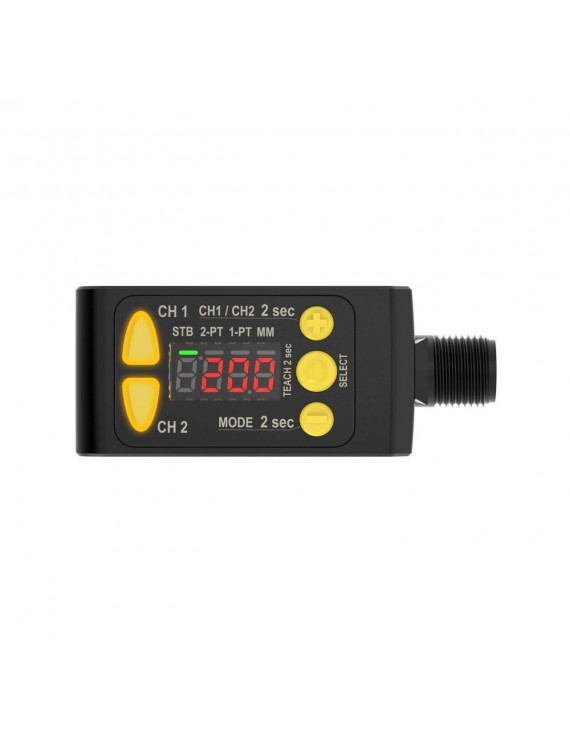

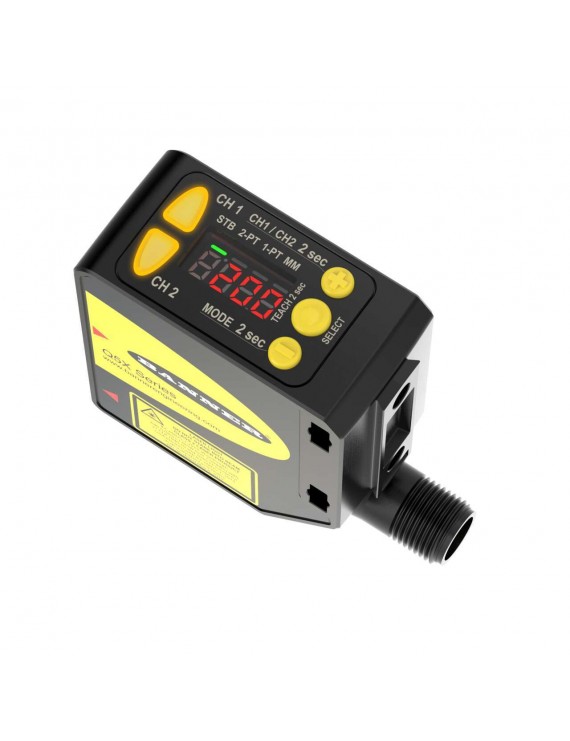

Resim Galerisi
