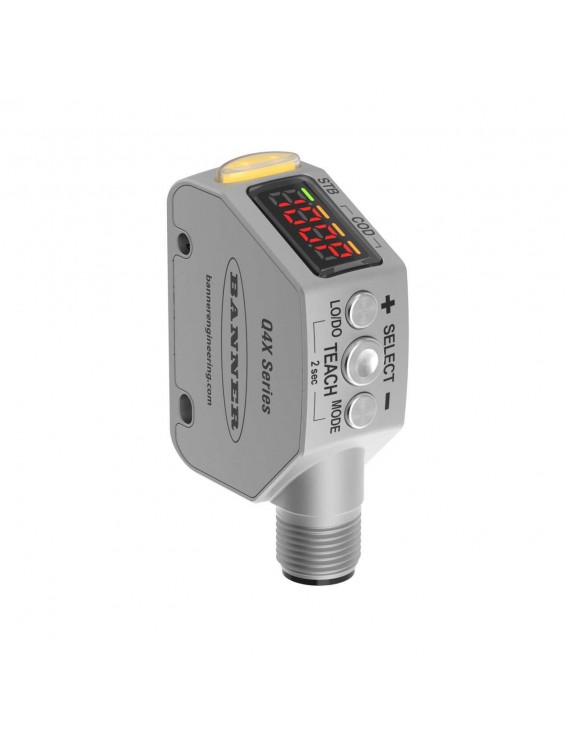

Q4XFPCOD310-Q8

Marka : Banner

Ürün Kodu: : 97544

Range: 310 mm

Input: 10-30 V dc

Output: 1 PNP

Cable: 4-pin M12 Integral QD

-
+

Power
DC
PFM Output
No
Sensing Beam
Visible Red Laser
Jam Detection
No
PC Configurable
No
IP Rating
IP67, IP68, IP69K
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
10-30 V dc
Pin / Wire Count
4
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background/Foreground Suppression
Housing Style
Rectangular
Device Type
Sensor
Primary Housing Material
Stainless Steel
Laser Classification
Class 1
Input/Output
Discrete
Connection
Integral QD
Quick Disconnect Type
M12
Max Sensing Distance (mm)
310
Minimum Sensing Distance (mm)
35
Adjustments
Push Button; Remote Teach
Number of Pins
4
Discrete (Switched) Outputs
1 PNP
Max Operating Temperature (C)
50
Min Operating Temperature (C)
-10
Minimum Response Time (ms)
1.5
Laser Control
Yes
Max Ambient Light (Lux)
5000
Feature: Remote Teach
Yes
Feature: Washdown Rated
Yes
Feature: Clear Object Detection
Yes
Feature: Timing (Hold/Delay)
Yes
Feature: Ecolab Certified
Yes
Feature: Chemical Resistant
Yes
Feature: Pump-in/ Pump-out
No
Feature: Quick Disconnect
Yes
Feature: Health/Marginal Signal Output
No
Application: Ultrasonic
No
Common Ethernet Protocol
No
IO Link
No
RS-232
No
Wireless
No
EPLAN Status
Published
EPLAN Original Sent Date
02/15/2024

Resim Galerisi

Q4XFPCOD310-Q8


Benzer Ürünler

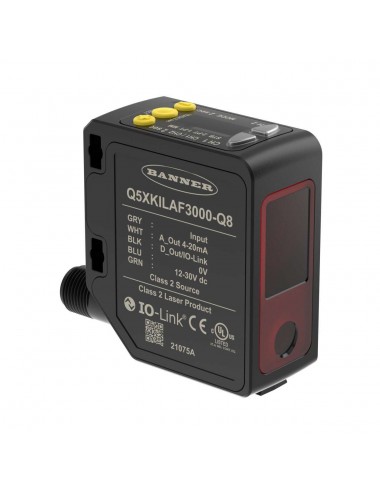

Q5XKILAF3000-Q8
Q5XKILAF3000-Q8
İNCELE

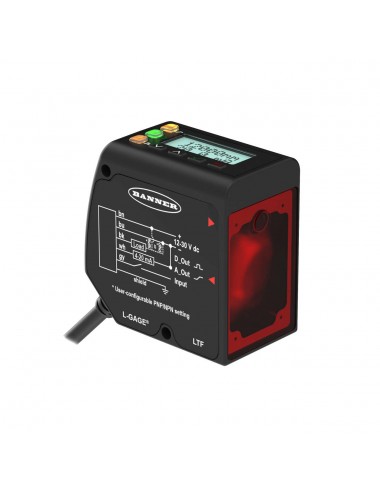

LTF12IC2LD
