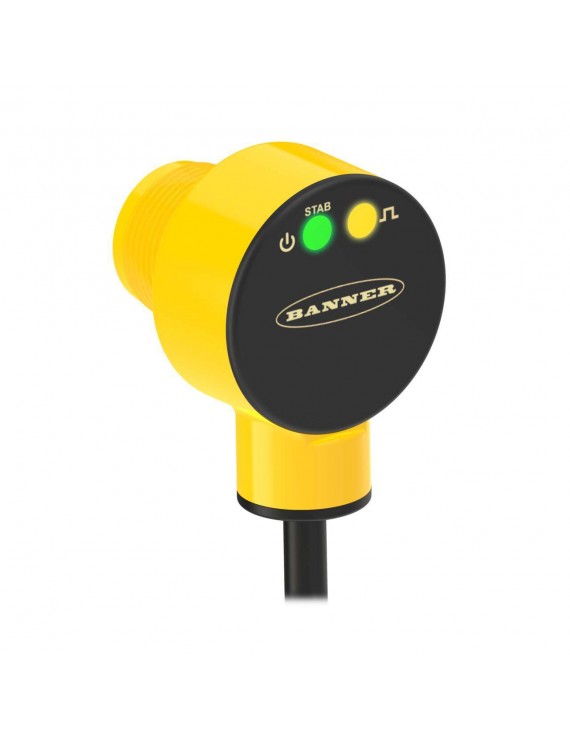

T18-2VPFF50IR-2M

Marka : Banner

Ürün Kodu: : 802692

Range: 50 mm

Input: 10-30 V dc

Output: complementary PNP

Cable: 2 m 4-conductor PVC Cable

-
+

Power
DC
Sensing Beam
Infrared LED
Cable Length (m)
2
IP Rating
IP67, IP68, IP69K
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
10-30 V dc
Pin / Wire Count
4
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Fixed)
Housing Style
Barrel
Primary Housing Material
Thermoplastic
Small Visible Spot
LED
Input/Output
Discrete
Max Sensing Distance (mm)
50
Outputs
PNP
Connection
Cable
Operation
Light/Dark Operate
Min Op. Temperature (C)
-40
Max Op. Temp. (C)
70
Output response time (ms)
1.5
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
870
Delay at Power-up (ms)
500
Repeatability (µs)
100
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
N/A
Barrel Diameter (mm)
18
Indicator
Indicator LEDs
Feature: Washdown Rated
Yes
Feature: Clear Object Detection
No
Feature: Timing (Hold/Delay)
No
Feature: Ecolab Certified
Yes
Feature: Encapsulated
Yes
Feature: Audible
No
Feature: Chemical Resistant
Yes
Feature: Quick Disconnect
No
Feature: Health/Marginal Signal Output
No
DeviceNet
No
