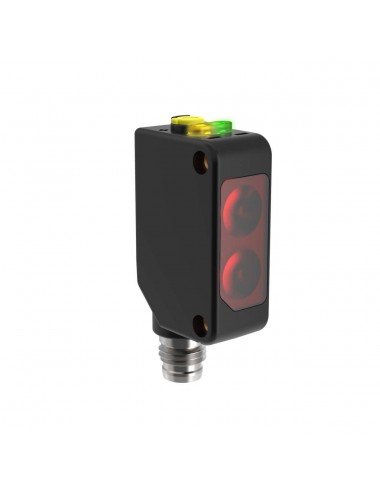

Q20KAF400Q

Marka : Banner

Ürün Kodu: : 814477

Range: 400 mm

Input: 10-30 V dc

Output: PNP with IO-Link

Cable: 150 mm (6 in) M8 Pigtail QD

-
+

Power
DC
Sensing Beam
Visible Red LED
Cable Length (m)
0.15
IP Rating
IP67
NEMA / UL Type Rating
NEMA 4X
Supply Voltage
10-30 V dc
Pin / Wire Count
4
Item Status
RELEASED
Sensing Mode (General)
Proximity
Sensing Mode (Detailed)
Background Suppression (Adjustable)
Housing Style
Rectangular
Primary Housing Material
Thermoplastic
Small Visible Spot
LED
Input/Output
Discrete
Max Sensing Distance (mm)
400
Outputs
PNP with IO-Link
Connection
Pigtail QD
Quick Disconnect Type
M8
Operation
Light/Dark Operate
Min Op. Temperature (C)
-20
Max Op. Temp. (C)
60
Output response time (ms)
1.7
Special Feature: Intrinsically Safe
No
Special Feature: Remote Teach
No
Special Feature: Water Detection
No
Sensing Beam Wavelength
632
Delay at Power-up (ms)
200
Repeatability (µs)
130
Number of Pins
4
Max Op. Relative Humidity [%]
95% @ 50°C
Lens Material
Acrylic
Adjustments
Potentiometer
Indicator
LEDs
Feature: Washdown Rated
No
Feature: Clear Object Detection
No
Feature: Timing (Hold/Delay)
No
Feature: Chemical Resistant
No
Feature: Quick Disconnect
Yes
Feature: Health/Marginal Signal Output
No
DeviceNet
No
IO Link
Yes
